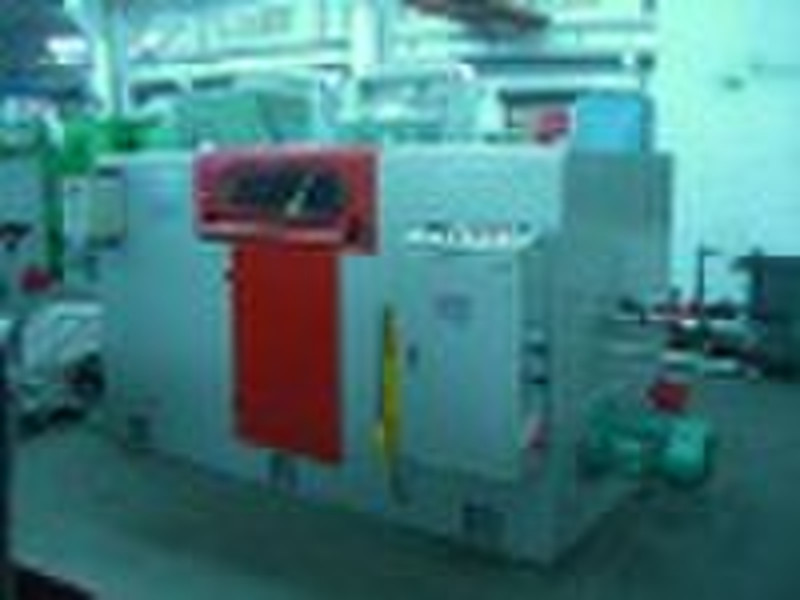

Double twsit bunching machine
Lion Chen
Contact person
Basic Information
. Main Specification: 1. Usage :For computer traversing, earphone wire, electric wire, phone wire, network wire, the stranding of nude PVC wires copper and tinning copper wire 2. wire individual dia. : 0.16 mm - 1.00 mmφ 3. Stranding Sec. Area: Nude copper wire 5.5 mm2/max.(soft copper wire) 4. Strand pitch : 11.15 60.24 mm.Or as your requirement to change 5. Cradle flyer R.P.M./Max. : 1600 RPM / Max. (3200 Twist). Speed adjust by transducer. 6. Stranding direction : (left-right stranding direction arbitrarily choose ) 7. Bow : Bow center with groove for smoothly wire moving, not distortion. 8. Motor : 7.5KW/10HP 9. Spool bobbin size :Φ630 steel bobbin X width 475 X bobbin holeΦ127 X bolt holeΦ20 X center distanceΦ180 (or as your requirement) 10.Electric source : 380V 50HZ 11. Bobbin load and unload part: Oil pressure lifter by hand. 12. Low noise design : equipped with noise absorb safety cover, below DB 80. 13. Brake : Magnetic brake, Inside & outside wire broken automatically brake. 14. Control : Transducer adjust speed control
