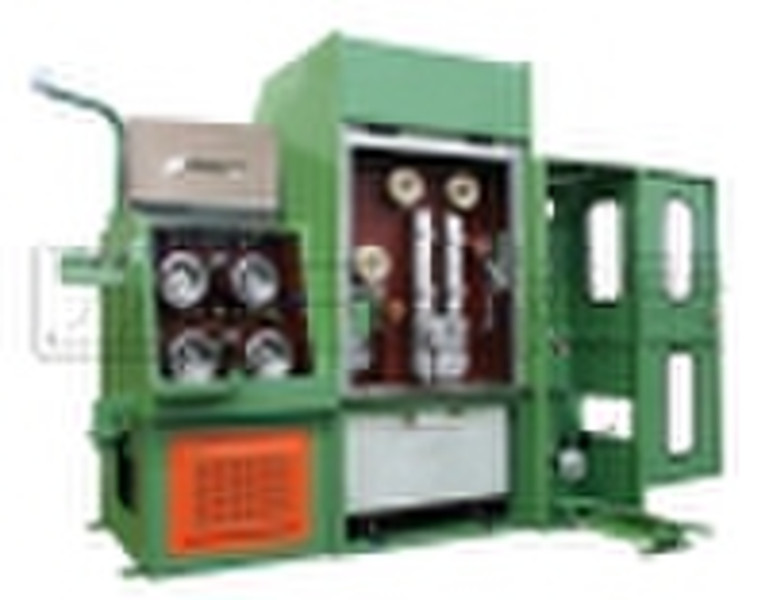

fine wire drawing machine with continuous annealin

SPEC : a. Usage : For copper wire drawing. b. Type of machine: Wet spray type continuous drawing machine. c. Drawing capstans arranged squarely can save space. d. Diameter of supply wire : 1.2 - 0. 6 mmφ / Max. e. Diameter of finished wire : 0.35 - 0.1 mmφ /Max. f. Drawing speed : 2 0 00 MPM / Max. g. Number of dies : 22 Pcs / Max. Drawing die O.D : 25mmφ x 8 -12mmT. (Drawing dies are excluded). h. Wire Drawing Area Reduction Ratio : 15% i. Final Die Area Reduction ratio : 8%. j. Main motor : 15 kw AC Motor with Inverter control. k. Spooler control : Synchronizing control by a separate 5 kw AC Motor with Inverter control. l. Main body : Ironed cast m. Transmission system : Flat belt. n. Capstans : Ceramic plasma coating Capstans. o. Lubricant oil capacity : 40 Liter / Minute. q. Spooling bobbin dimension : Flange dia. O.D. 3 00 mmφ/ Max. Capacity of Copper : 25 - 50 Kgs. r. Traversing Width : 310mm / Max. s. Bobbin loading & unloading : Shaft type , . Manual operated by screw. . Window with safety guard. t. Safety cover : For drawing capstan.(SUS304)Stainless plate. : For pulley (steel mesh). u . Bobbin brake : electric brake. v . Control panel : 1 set w. annealler : 12KVA(4 poles)
