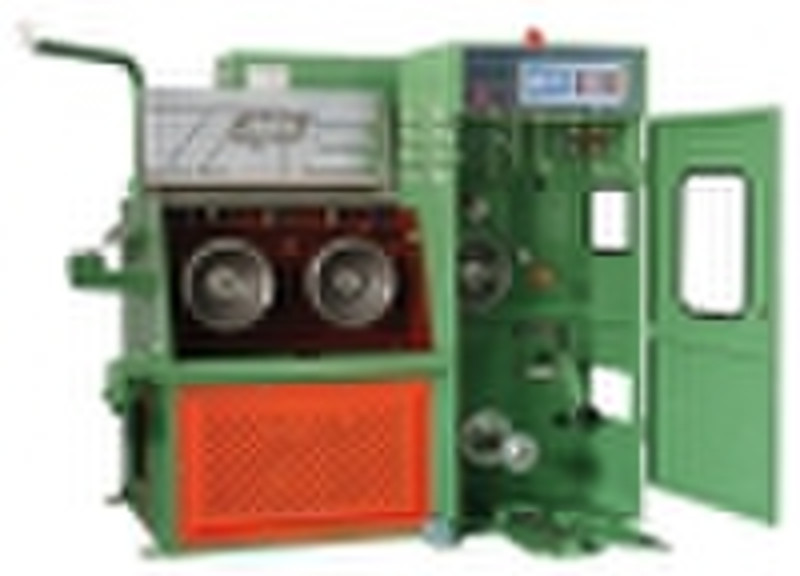

intermediate aluminium wire drawing machine

a. Usage: For aluminium wire drawing. b. Type of machine: 2 capstans Horizontal type. c. Control system : By LCD control d. Motor control : Dual inverter control e.Diameter of supply wire: 0.70- 2.00 mmφ / Max. f. Diameter of finished wire:0.20- 0.60mmφ /Max. g. Drawing speed : 1200 MPM / Max. h. Number of dies : 14Pcs / Max. i. Transmission type :By flat belt j. Slip ratio of machine :15% k. Fix speed capstan slip ratio: 15% l. Capstan :Whole type plasmacapatan m.Capstan dia.(Max.) : 315mmφ n. Fix speed capstan dia. : 268mmφ o.Spool bobbin size(mm): OD.380mm/max. p. Bobbin loading & unloading type : Shaft type q. Traversing unit : 40 Wstrap speed-downmotor type r. Main motor(DC/AC/HP): 11KW(15HP) s. Spool motor(take-off motor) (DC/AC/HP):3.75 KW(5HP) u. Revise system : Computer synchronous control spooler w. Detecting device:Weight balance by swing arm Tension control : Weight balance type x. Max. loading capacity:5- 15kg y. Lubrication type : Spray type z. Brake :Magnetic brake Lubrication type for bearing:without oil Power source : 380V 50/60HZ Lubricant oil capacity : 40 Liter/Minute
