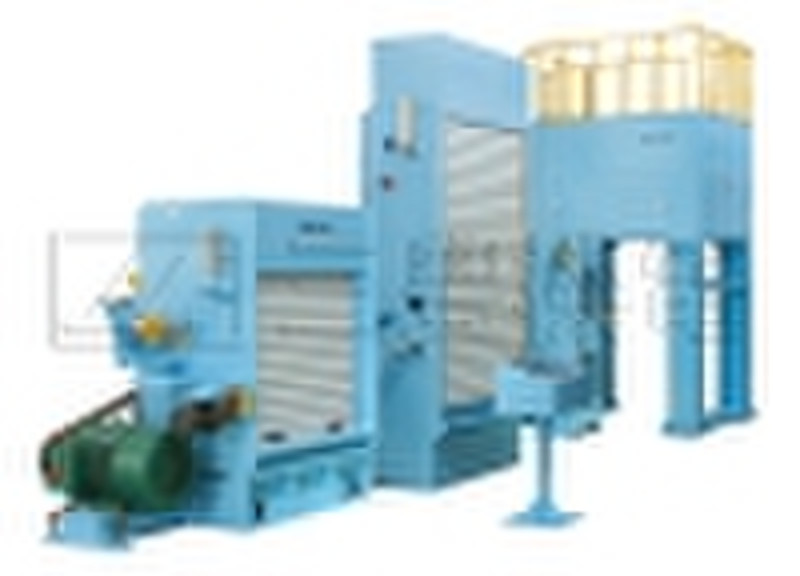

INTERMEDIATE ALUMINIUM WIRE DRAWING MACHINE

Spec. a. Usage: For aluminium wire drawing. b. Type of machine: 4 capstans Horizontal type. c. Control system : By LCD control d. Motor control : Dual inverter control e.Diameter of supply wire: 2.00- 4.00 mmφ / Max. f. Diameter of finished wire:0.50- 2.00mmφ /Max. g. Drawing speed : 1000 MPM / Max. h. Number of dies : 13Pcs / Max. i. Transmission type :By precision ground j. Slip ratio of machine :18% k. Fix speed capstan slip ratio: 18% l. Capstan :Tire type exchangeable plasmacapatan m.Capstan dia.(Max.) : 300mmφ n. Fix speed capstan dia. : 265mmφ o.Spool bobbin size(mm): φ350mm-630mm/max. p. Bobbin loading & unloading type : Shaft type q. Traversing unit : 90 Wstrap speed-downmotor type r. Main motor(DC/AC/HP): 37KW(50HP) s. Spool motor(take-off motor) (DC/AC/HP):7.5 KW(10HP) u. Revise system : Computer synchronous control spooler w. Detecting device:Weight balance by swing arm Tension control :By air pressure adjust. x. Max. loading capacity: 150kg/max. y. Lubrication type : Immersion type z. Brake :Magnetic brake Lubrication type for bearing: Pump enforce oil Power source : 380V 50/60HZ Lubricant oil capacity : 100 Liter/Minute
