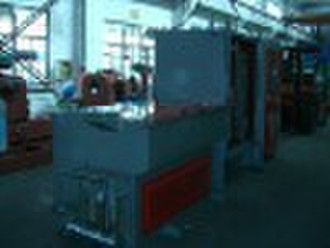

Intermediate fine wire drawing machine with contin

SPEC : 1. Usage : For copper wire drawing. 2. Diameter of supply wire : 1.6 - 0.8 mmφ / Max. 3. Diameter of finished wire : 0.50- 0.12 mmφ /Max. 4. Drawing speed : 1500 MPM / Max. 5. Number of dies : 22 Pcs / Max. Drawing die O.D : 25mmφ x 8 -12mmT. (Drawing dies are excluded). 6. Wire Drawing Area Reduction Ratio : 15% (the 1st to the 21th) Final Die Area Reduction ratio : 8%. 7. Type of machine : Immersion 4 capstans horizontal type continuous drawing. 8. Main motor : 20HP AC Motor with Inverter control. Spooler control : 7.5HP AC Motor with Inverter control. 9. Main body : Steel plate Ironed cast 10. Transmission system : Whole machine transmission, by timing belt. 11. Capstans : Ceramic plasma coating Capstans. 12. Lubricant oil capacity : 40 Liter / Minute.(without water pump) Spray type above dies and capstan 13.DC voltage nitrogen intenerating machine: 30KVA, 4 Poles DC voltage output annealing type. 14. Spooling bobbin dimension : O.D. 380 mmφ/ Max. (or as your design) Capacity of Copper : 25 - 100 Kgs. 15. Bobbin loading & unloading : Shaft type , with reel up & down trolley 16. Traversing type : Synchronize motor traversing, traversing width is 310mm/max. 17.Spool control type : Weight balance tension by swing arm, automatically figure revise control spool tension. 18. Safety cover : Transmission section safety cover air hole reticulation. Drawing section safety cover Spool section safety cover seal type with three detecting windows. 19. Brake :12kg-m magnetic brake. 20. Operation panel and control case. 21.Spare parts.
