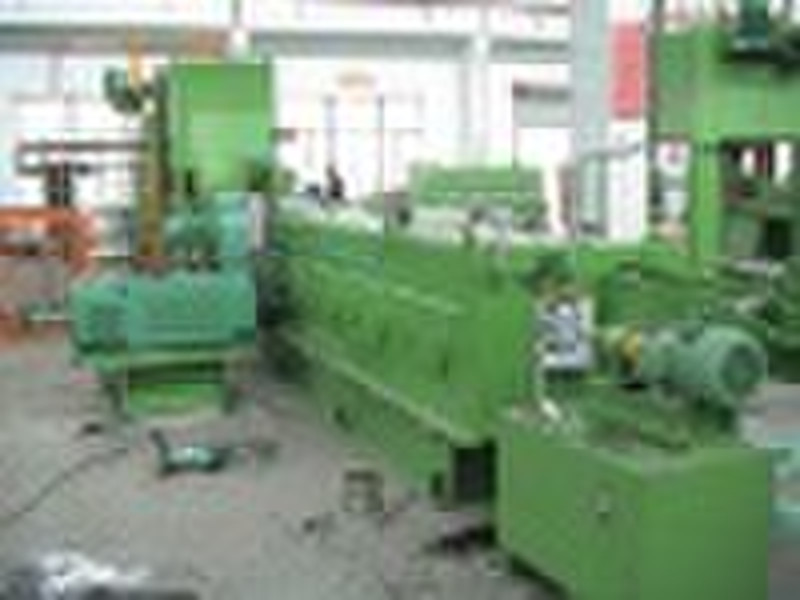

rod break down machine

rod break down machine 1.Machine model : SNH-132.Drawing line speed : 1500mpm/max.3.Drawing dies NO. :134.Wire inlet dia. :8.0mm copper wire 9.5mm Alu.wire5.Wire finished dia. :3.5-1.2mm copper wire 4.5-1.6mm Alu. wire6.The rapid dies change system :The rapid dies change system need not change all the dies in working but final one, taht save a lot of time.7.Control system : All alarm and parameter can be controlled and displayed on a fluorescent backlid LCD graphics screen, Digital control for motor are available for computer operation.8.Motor contor : DC Motor digital control9.Transmission type :By precision ground helical gears.10.Slip ratio of machine:23.6%11.Capstan :Multi-step type replaced and Tungsten coating on the capstan.12.Capstan dia. :450mm13.Spool bobbin size :500-630mm14.Main motor :450HP(350KW)15.Take-off motor :75HP(55KW)16.Spooer motor :40HP(30KW)17.Lubrication type :Bath lubrication18.Lubrictaion type for bearing:By enforced oil pump.19.Subsequent equipment(Optional): Continuous annealing equipment Auto-spooler& Dead block coiler system Drawing lubricant filter&cooling system Ponting machine
