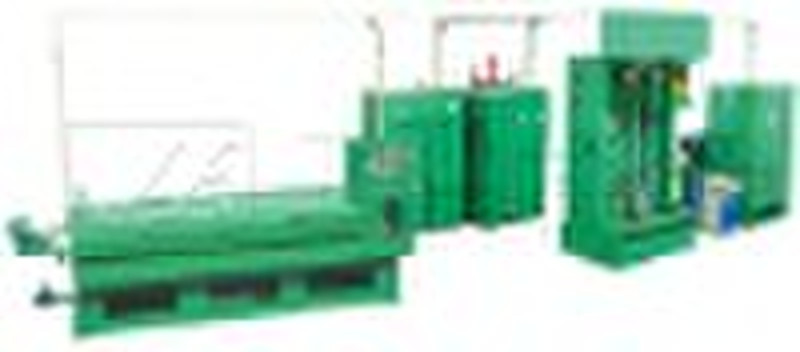

wire drawing machine

a. Usage : For Copper wire drawing. b. Type of machine : 4 capstans Horizontal type. c. Control system :By computer digital control with produce recorder or LCD controld. Motor control : Dual inverter control e.Diameter of supply wire : 2.60- 3.20 mmφ / Max. f. Diameter of finished wire :0.38- 1.20 mmφ /Max. g. Drawing speed : 2000 MPM / Max. h. Number of dies: 17Pcs / Max. i. Transmission type:By precision ground gearsj. Slip ratio of machine :18%k. Fix speed capstan slip ratio: 13%l. Capstan:Multi-step type exchange plasmacapatanm.Capstan dia.(Max.) : 329.4mmφn. Fix speed capstan dia. : 329.4mmφo.Spool bobbin size(mm): φ500mm-630mm/max.p. Bobbin loading & unloading type: Shaft typeq. Traversing unit : 90 Wstrap speed-downmotor typer. Main motor(DC/AC/HP): 55KW(75HP) s. Spool motor(take-off motor) (DC/AC/HP):18 KW(25HP) Total power consumption : 78KW+72KVAu. Revise system : Synchronous control spoolerw. Detecting device:Weight balance by swing armTension control :By air pressure adjust.x. Max. loading capacity: 500kg/max.y. Lubrication type : Immersion typez. Brake :Disc brakeLubrication type for bearing : Pump enforce oilPower source :380V 50/60HZLubricant oil capacity :100 Liter/Minute
